Basic Information
Placement
Portable, Windshield, Dashboard
Track View
PC, iOS APP, SMS Coordinate, Android APP
Positioning Mode
GSM, GPS, GPRS, LBS, AGPS, Beidou
Data Storage
Cloud Storage
Production Capacity
50,000 pieces/Month
Packaging & Delivery
Package Size
12.00cm * 8.00cm * 4.00cm
Technical Specifications
| Model Number |
QP103 |
| Internal Battery |
700 mAh (3.7V) |
| Working Voltage |
DC 3.4V - 4.5V |
| Working Current |
4V/60mA |
| Standby Current |
4V/5mA |
| Working Temperature |
-20ºC - 75ºC |
| GSM Module |
A7670C |
| GPS Chip |
AT6558R |
| Network Support |
4G LTE |
| Frequency Bands |
LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41 |
| Location Accuracy |
<5m |

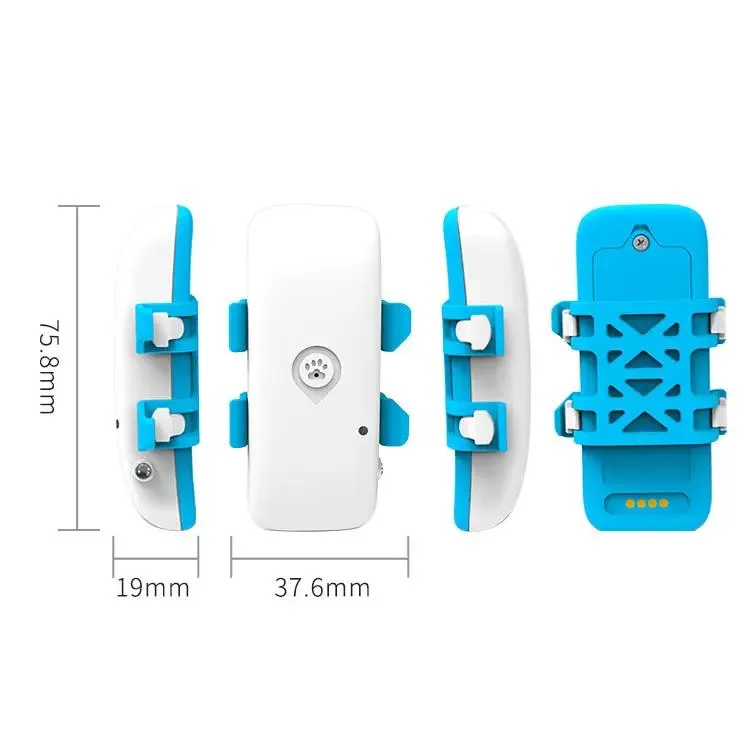

| Dimension |
75.8mm * 37.6mm * 19mm |
| Weight |
42.2g (including battery) |
Product Functions
✓ Multi-Mode Positioning (GPS+Beidou+LBS)
✓ Waterproof IP67 Rating
✓ Real-time Monitoring (Web/App/SMS)
✓ Historical Route Playback
✓ Geo-Fence Protection
✓ Voice Monitoring Function
✓ Low Battery Alert

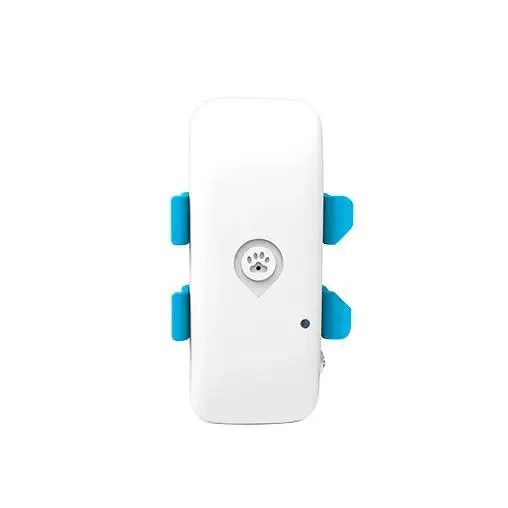

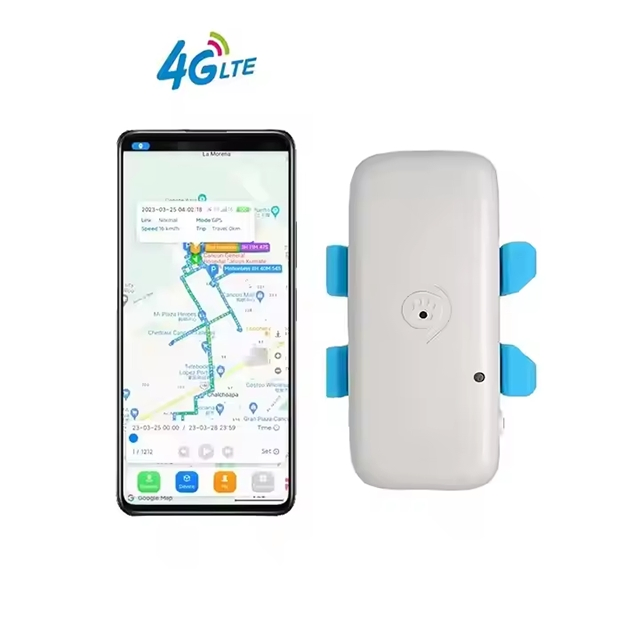

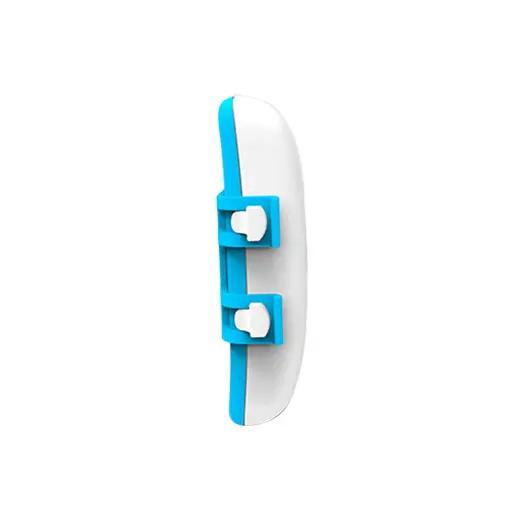

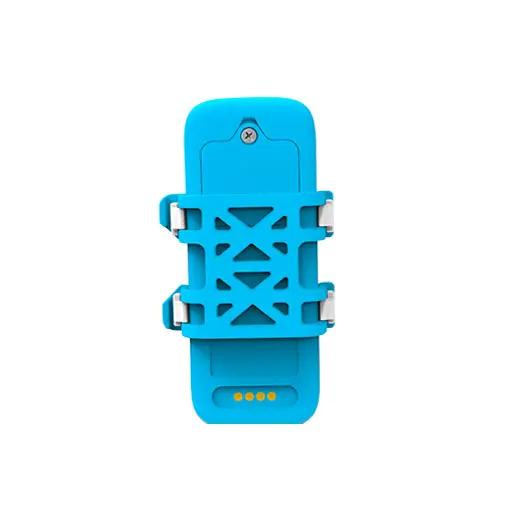

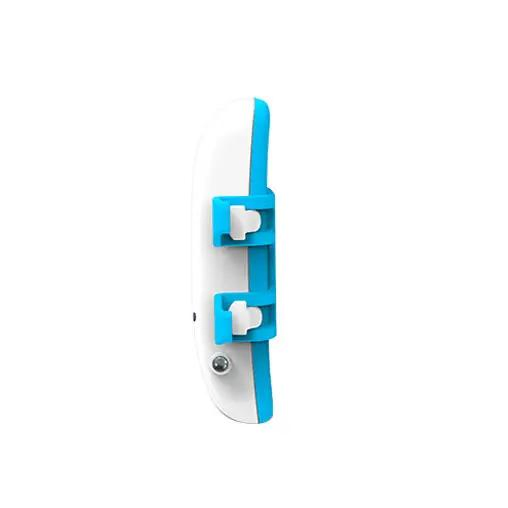

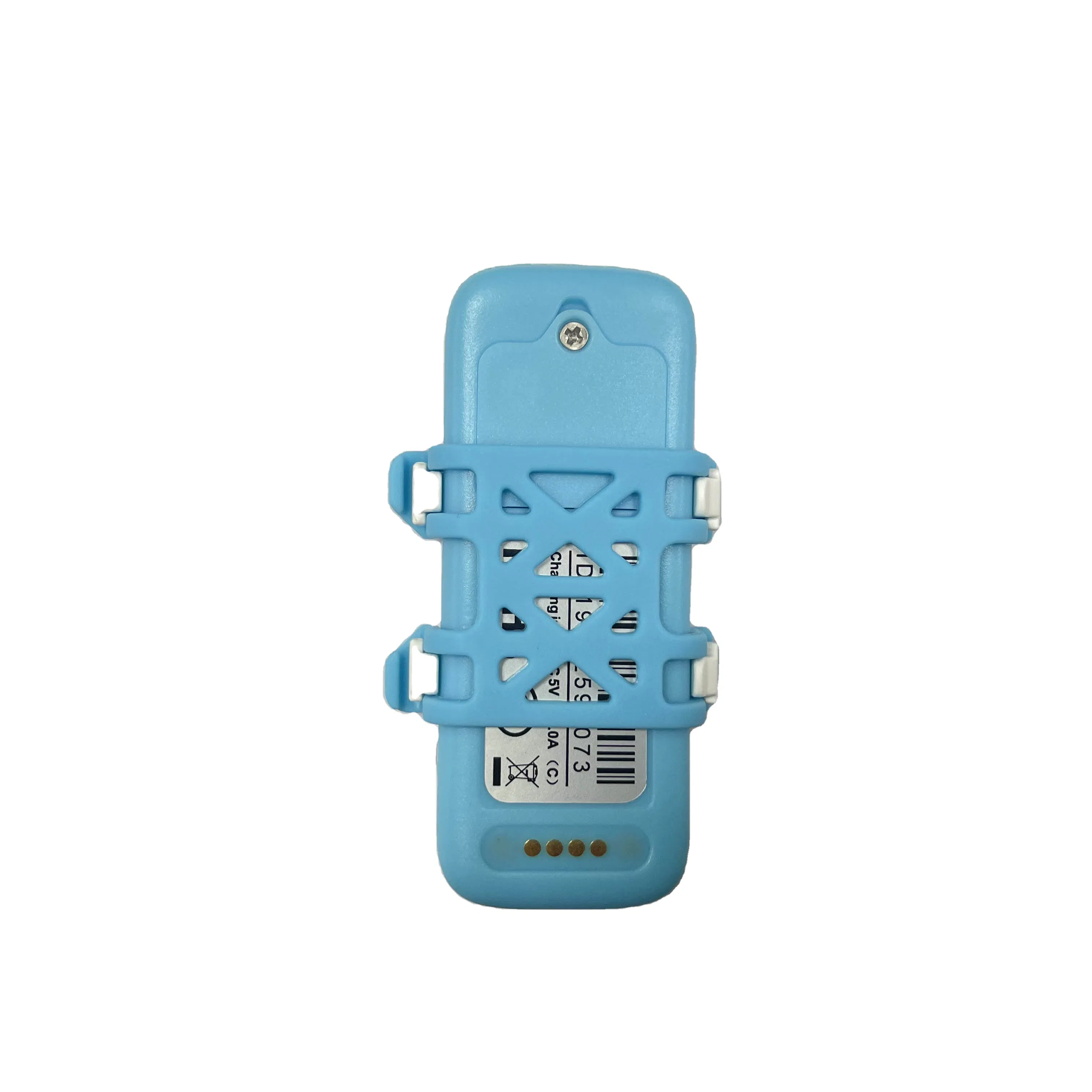

Product Showcase

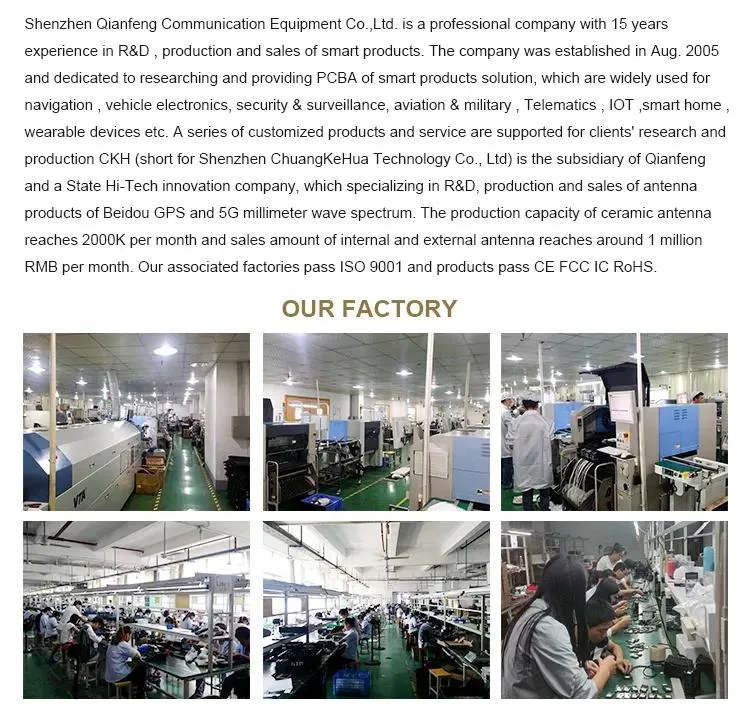

Manufacturing & Quality

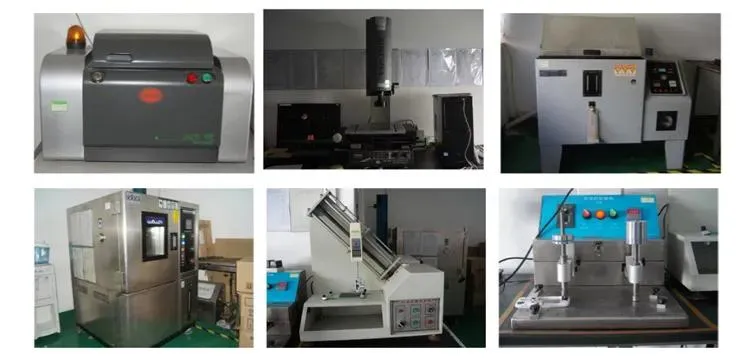

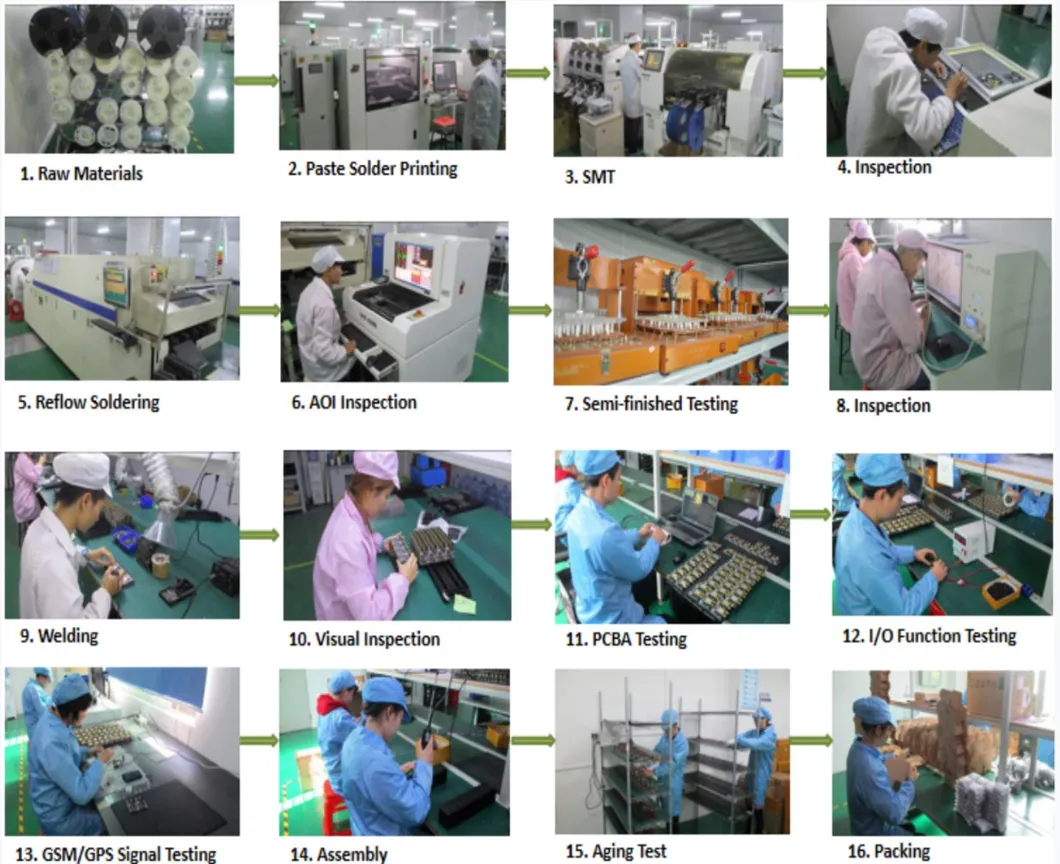

Production Process

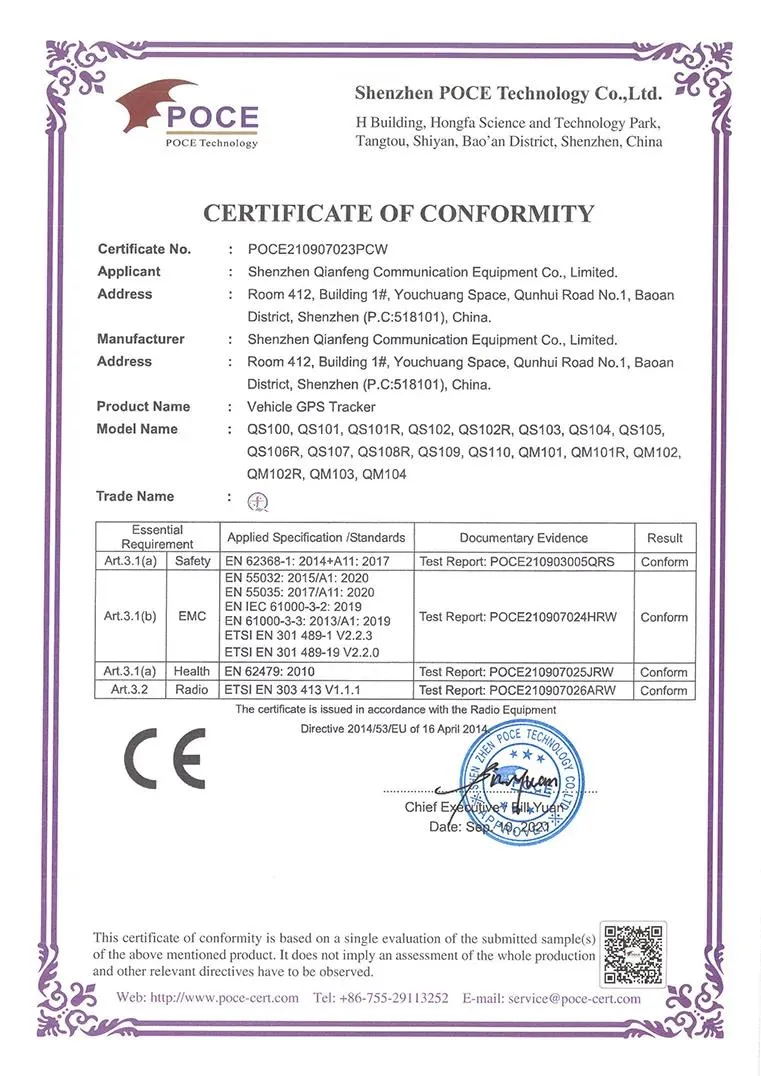

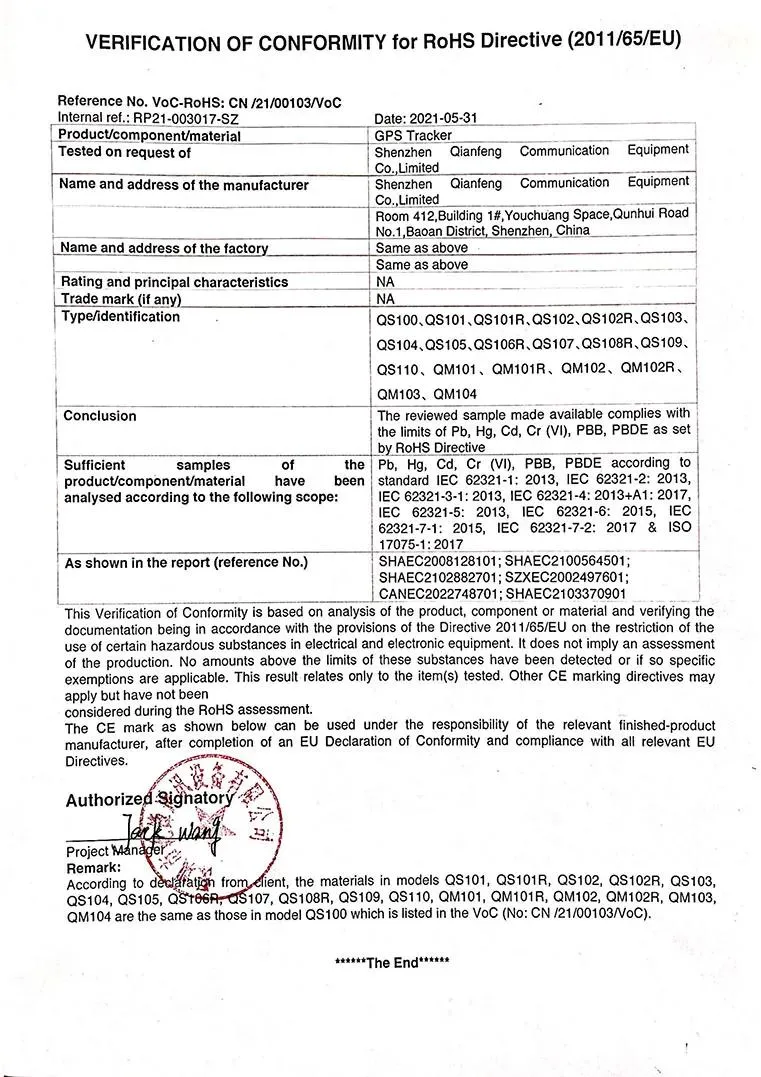

Certifications
Frequently Asked Questions
How does the multi-mode positioning work?
The QP103 utilizes GPS, Beidou, and LBS (Location Based Service) to ensure high-accuracy tracking even in environments with weak satellite signals.
Is this tracker waterproof for outdoor use?
Yes, it features an IP67 waterproof rating, making it highly resistant to water and dust, ideal for outdoor pets and equipment.
What type of network does the device support?
This device supports 4G LTE networks (both FDD and TDD bands), ensuring fast data transmission and reliable connectivity across various regions.
How can I view the tracking data?
Users can track locations in real-time through a dedicated Web platform, mobile apps for iOS and Android, or via SMS coordinates.
What are the battery specifications?
The device is equipped with a 700mAh internal battery (3.7V) with a very low standby current of 5mA to extend operational time.
Does it support safety alerts?
Yes, it supports Geo-fence settings to alert you when the device leaves a designated area, as well as low battery alerts to ensure continuous monitoring.
