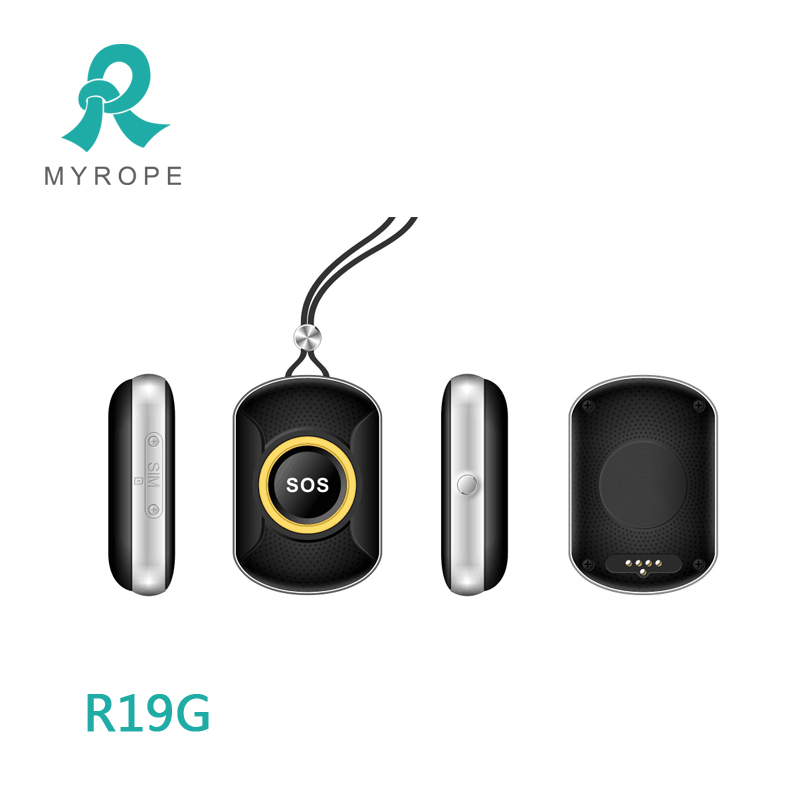

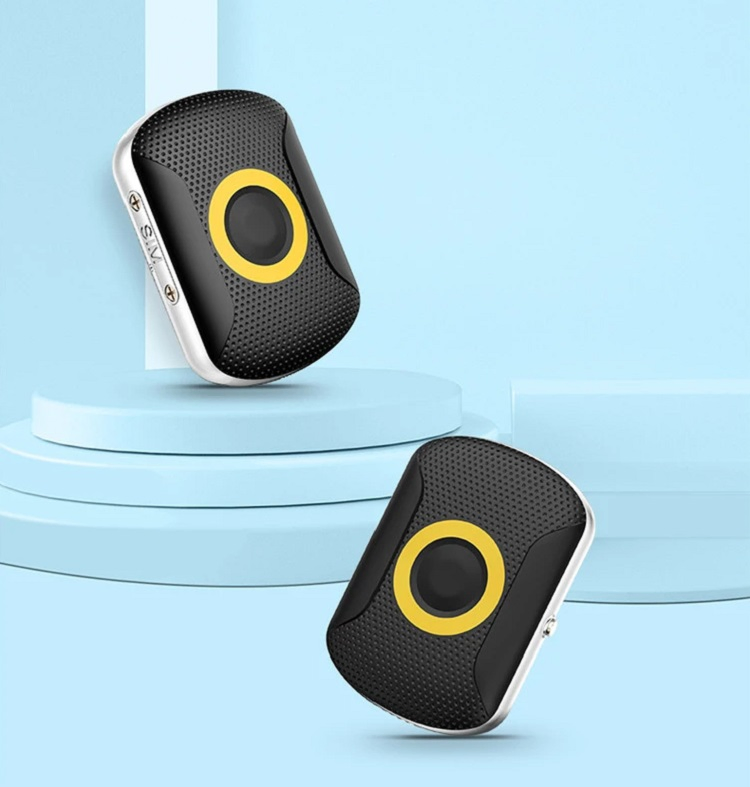

Rechargeable Battery Pet Real Time Location Tracking Smart Micro Mini Size Pet GPS Tracker

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
R19G
Certification
RoHS, ISO2000, FCC, CE
Warranty
1 Year
Memory
512m+4GB
Waterproof
IP67
Positioning Accuracy
5-15m
Battery
900mAh Lithium Polymer
Standby
>3 Days

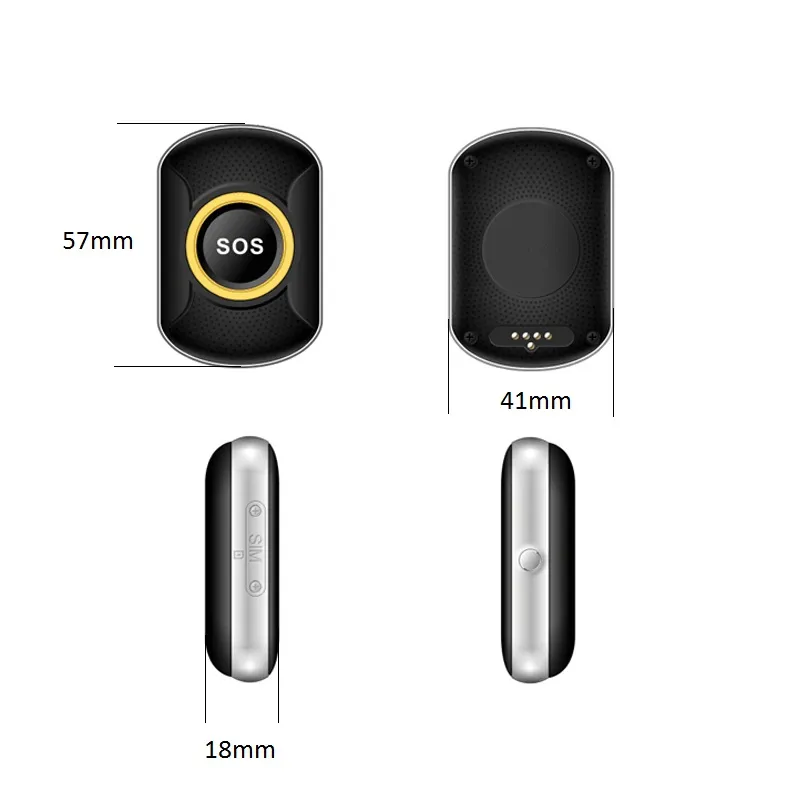

Specification
57mm x 41mm x 18mm
Production Capacity
10000 PCS/Week

Rechargeable Real Time Pet GPS Tracker

Smart micro mini size pet tracking solution designed for safety and real-time location monitoring.

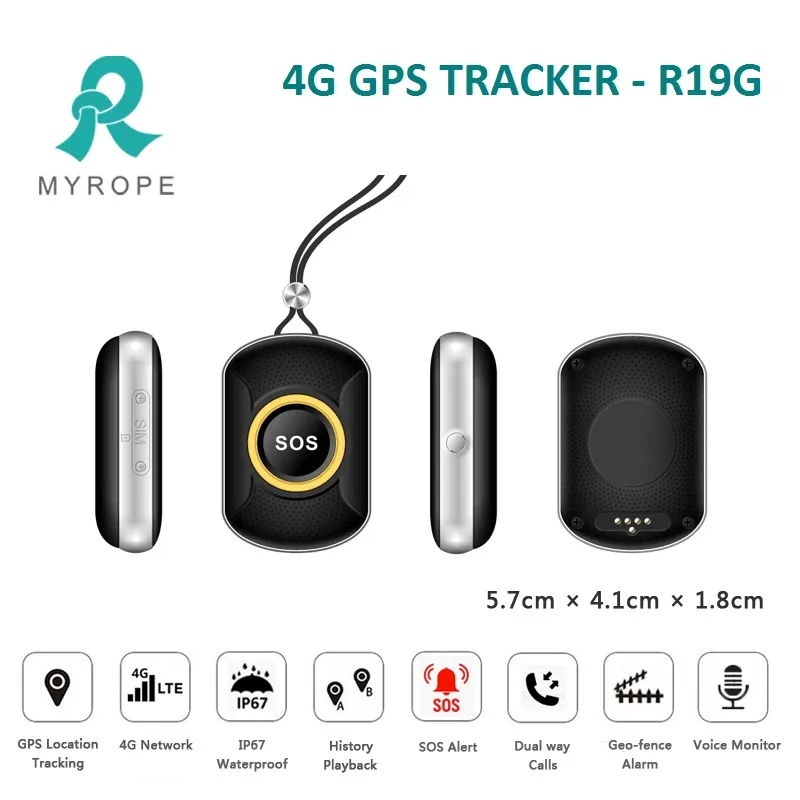

Pet GPS Tracker

Core Functions

1
GPS Positioning: Accurate outdoors tracking.
2
LBS & Wifi: Accurate indoor positioning.
3

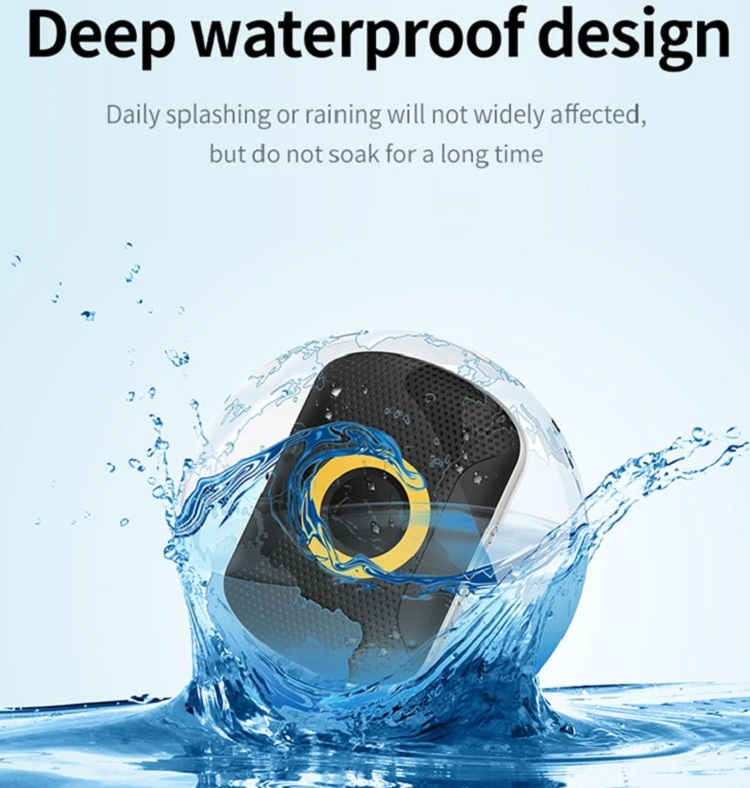

IP67 Waterproof: Full protection against water.
4
4G Network: High-speed data support.
5
Two-way Call: Make and answer calls easily.
6
Voice Monitoring: Real-time environment listening.
7
SOS Alert: One-key emergency notification.
8
GEO-Fence: Safety zone alarm.

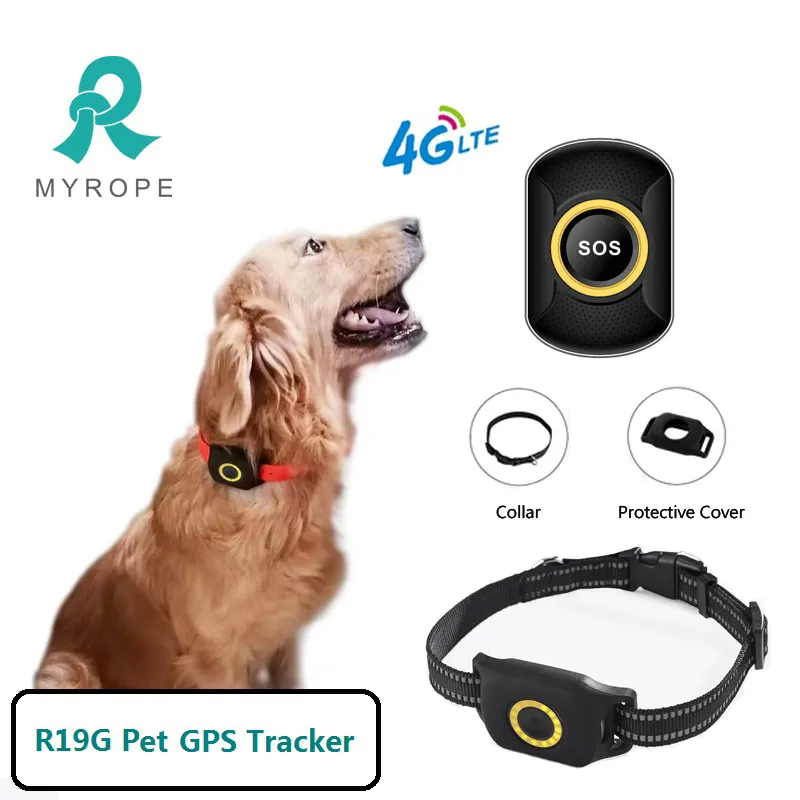

Tracking Feature 1 Tracking Feature 2

Technical Parameters

Items Parameters
US/Australia VersionFDD: B1-B5, B7, B12, B28A; WCDMA: B1/2/5; GSM: B2/3/5/8
Asia/Europe VersionFDD: B1-B5, B7, B20; WCDMA: B1/2/5; GSM: B2/3/5
GPS Sensitivity-165 dBm
Wifi Accuracy5-25m
CPUMTK 9820E
OS SupportAndroid 2.3+ / iOS 5.0+
Operating Temp-20ºC to +70ºC
Weight24g
PedometerBMI160 (6-axis)

Tracking Platform & App

Our powerful tracking platform is deployed in cloud cluster servers ensuring:

  • Unlimited device hosting capacity.
  • High stability with backup server systems.
  • Fast response times and customized reporting.

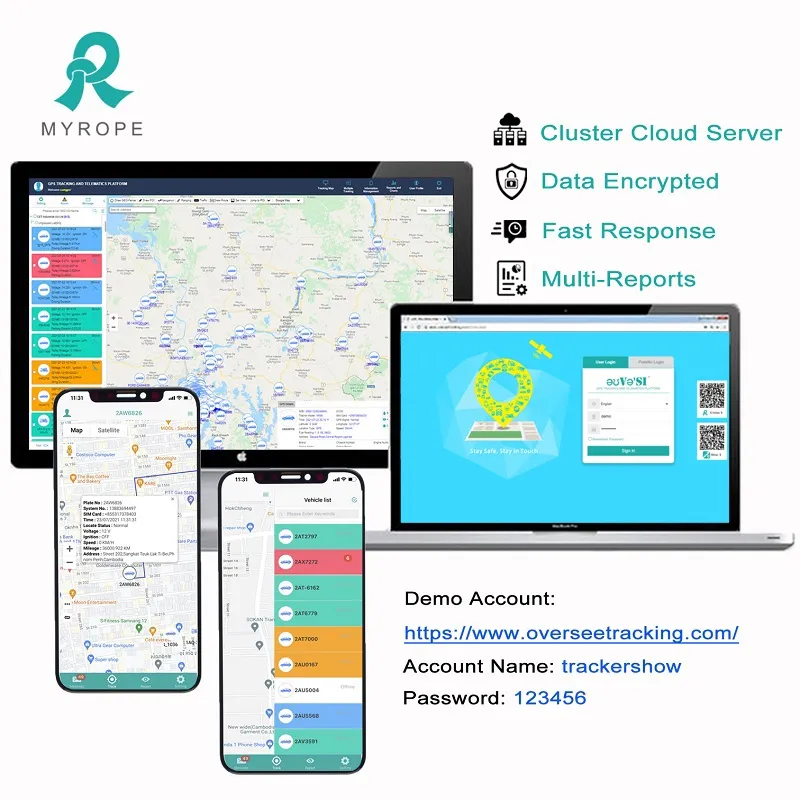

Mobile App Interface

Quality Assurance

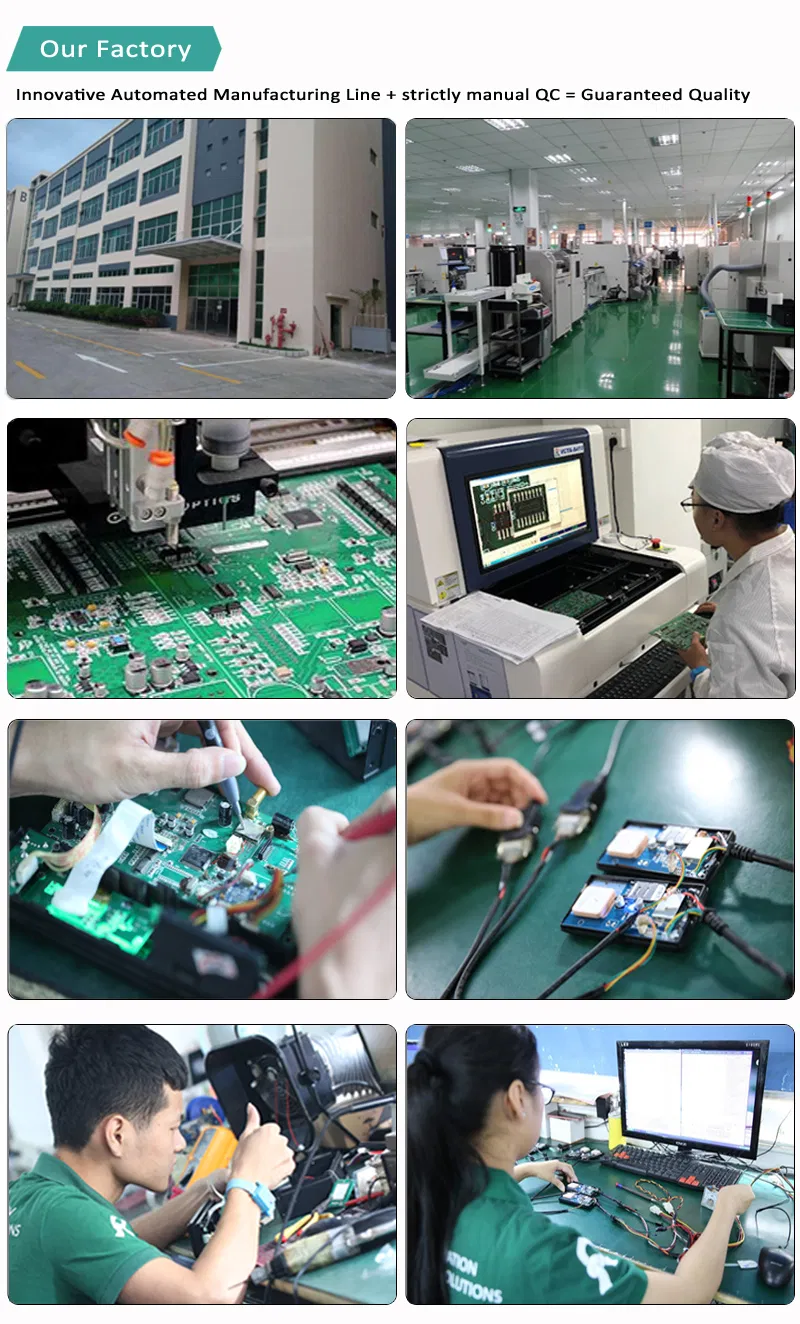

We are a direct manufacturer with more than 10 years of experience in the GPS tracking industry. We have built up a large manufacturing base including molding, plastics shaping, SMT and full production lines. All units are checked and tested one by one before delivery.

Quality Test Production Line Factory Overview

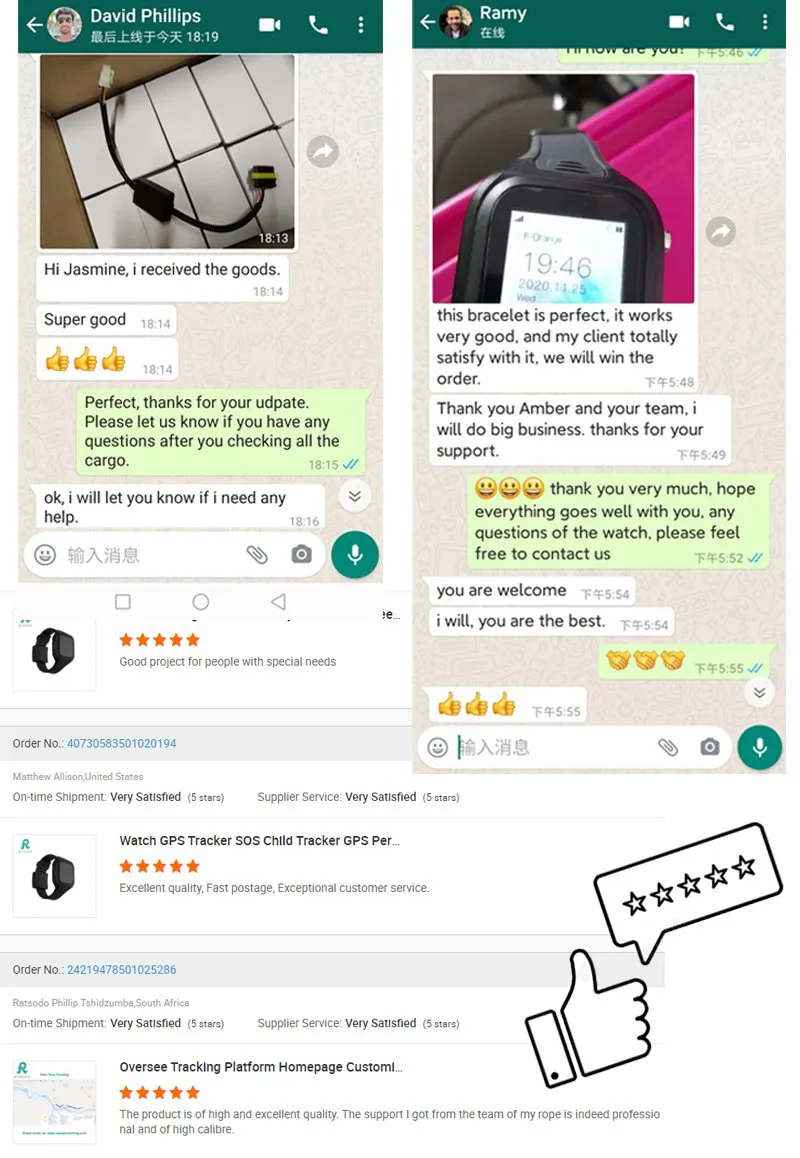

Certificates Feedback

Frequently Asked Questions

Q1: How accurate is the GPS tracking?

A: Outdoors, the accuracy is between 5-15 meters. Indoors, it uses Wifi and LBS for positioning with an accuracy of 5-25m and 100-1000m respectively.

Q2: Is the device truly waterproof?

A: Yes, it is rated IP67, which means it is protected against dust and can withstand being submerged in water for a short time.

Q3: How long does the battery last on a single charge?

A: The 900mAh battery provides a standby time of more than 3 days, depending on the frequency of location reporting.

Q4: Does this tracker support 4G networks?

A: Yes, it supports 4G FDD networks and is also backward compatible with 3G WCDMA and 2G GSM networks.

Q5: Can I track my pet through a smartphone?

A: Absolutely. We provide a dedicated mobile application for both iOS and Android, as well as a web-based tracking platform.

Q6: What type of SIM card is required?

A: The device requires a Nano SIM card with data and voice services enabled.
